BUCKET CUP M/C최종 수정 일자 : 2020-08-05 16:29:03
| BUCKET CUP M/C |
| |

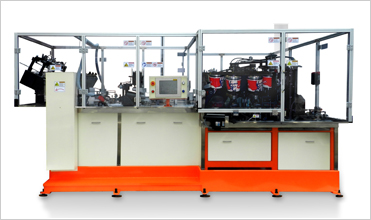

| |  | | The EAGLE-700E produces large paper buckets and cups (40oz to 170oz) for fried chicken, popcorn and snacks using double or single sided PE coated, and also glue sealed, paperboard.
The EAGLE-700E is a very economic and practical machine due to small area it occupies and the low production and operating costs. Up to 55 cups per minute can be produced. The EAGLE-700E provides quick and simple tooling changeover, maintenance and operation. |
| | | | | | MAIN SPECIFICATIONS | | | • | Model : EAGLE 700E | | • | Production Speed: Max. 50 cups per min. | | • | Cup Size Range: 36oz ~ 170oz | | • | Sealing Method: By hot air / cold glue | | • | Paper: One or Both side PE coated or Non coated | | • | Paper Weight: 180gsm ~550gsm | | • | Electric Power: 220V, 50/60Hz, 3P, 4W | | • | Electric Consumption: 15Kw | | • | Air Requirement: 1.8m3/min. at 5kg/cm2 | | • | Weight: 4,000kgs |
|
| | |
|
